Description

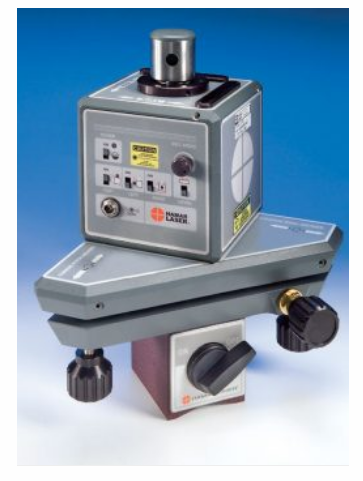

Hamar Laser’s L-740 Ultra-Precision Leveling Laser System is the most accurate and easy-to-use leveling, surface flatness and straightness measurement system on the market today. It features an automatically rotating laser plane that is the flattest in the world, large-range, wireless targets and built-in 1 arc second level vials. Continuously rotating laser planes and the capability to use multiple sensors at the same time let you level machinery 2 to 3 times faster than laser transits, theodolites or levels.
System Highlights
- Fast: Aligns and levels large machine tool beds up to 70% faster than traditional methods or interferometers.
- Easy: Multiple high-resolution wireless targets with a range of up to 100 ft (30 m) provide real-time alignment data so misalignment errors can be fixed without changing the setup.
- Accurate: Ultra-precise laser planes have a flatness of 0.5 arc second (.00003 in/ft or 0.0025 mm/m) in a 360º sweep and 0.25 arc second (.000015 in/ft or 0.001 mm/m) in a 90º sweep.
- Versatile: Flatness and straightness measurements of almost any surface, many measuring and leveling applications, surface plate flatness calibration and checking parallelism.
- Smart: Powerful Windows-based Plane5 alignment software, combined with advanced wireless interfaces, makes collecting and analyzing alignment data fast and easy.
FEATURES
Key Features
- Continuously rotating diode laser with 100 ft (30.5 m) radius operating range.
- Set up in as little as 10 minutes.
- Laser plane flat to 0.5 arc second (.00003 in/ft or 0.0025 mm/m).
- Uses A-1519-2.4ZB Single-Axis Wireless Target with .00002 in. (0.0005 mm) resolution and ± .55 in. (± 14 mm) measuring range.
- R-1356-2.4ZB PDA Readout displays data for up to 5 A-1519-2.4ZB Targets simultaneously.
- Real-time data display.
- Backlit, precision level vials accurate to 3 arc seconds (.00018 in/ft or 0.015 mm/m).
- Upgrade to L-740SP Split-Prism Levels for 1 arc second accuracy.
- Uses AC adapter or battery pack.

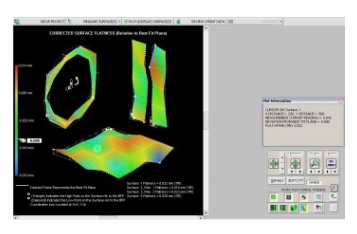

- Windows 7/8/10-based Plane5 software quickly records and analyzes flatness data.
