Description

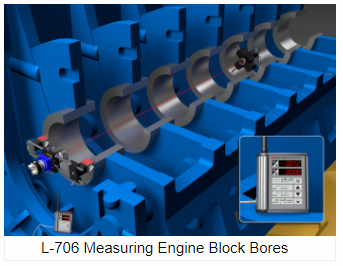

Hamar Laser’s L-706 Bore Laser Alignment System is highly accurate and unparalleled for ease of use. It can handle a wide range of bore alignment and straightness applications. Even extremely difficult bore alignment jobs, such as spherical bearings, can be done easily. The L-706 may be used at distances up to 100 feet, and is recommended for applications with higher pointing-accuracy requirements, such as engine block bore alignment. The L-705 is recommended for applications with lower pointing-accuracy requirements, such as extruder barrel alignments or aerospace hinge lines.
System Highlights
- Fast: 15-minute setup time. Measure each bore in seconds!

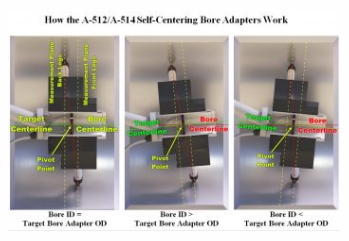

- Easy: Unique self-centering adapters are easy to insert into tight spaces and do not need to be inverted (0° & 180°) to calculate results.
- Simple to learn: Use simple X-Y readouts to view the data. No “black boxes” needed!
- Versatile: Many target and adapter options for bore diameters from .250 in. (10 mm) to 40 in. (1 m) or more.
- Bore9 Software: Record bore alignment, calculate straightness results and print reports using optional Windows-based Bore9 Software.
Key Features
- 15-minute setup time. Measure each bore in seconds.
- L-706 Operational Range: 1 to 100 feet (0.2 to 30.5 m).

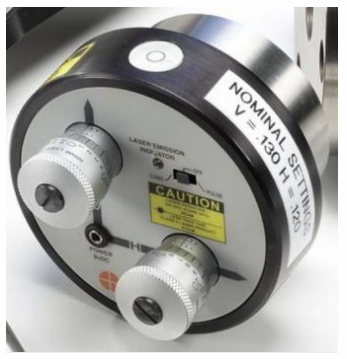

- Angular adjustment resolution of .001 in. in 100 ft (0.025 mm in 30 m)

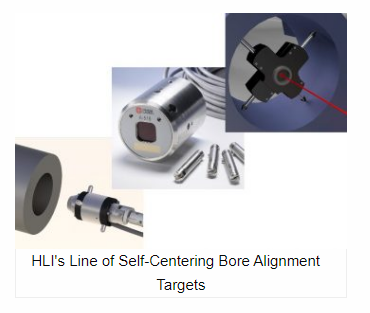

- A-514A,B,C Self-Centering Bore Adapters are easy to insert into tight spaces and do not need to be inverted (0° & 180°) to calculate results.
- Adjustable legs fit a large range of bore diameters from 3.75 to 40 in. (95.3 mm to 1 m) or more.
- A-514GS Leg-Setting Gage centers adapters to .0002 in. (0.005 mm).
- R-1307 Readouts with .00001 in. (0.001 mm) resolution update in real time as the bore is adjusted.
- Add a second readout to transmit readings wirelessly up to 200 ft (61 m).

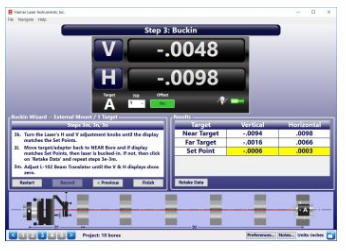

- Optional Bore9 Software aids with setup, records bore alignment data, analyzes the results and prints reports.
- Optional small-bore targets can align bores as small as .250 in. (10 mm).
- Optional spherical-bore target with Virtual-PSD™ technology comes with customized bore adapters for easy and fast alignments.
- Durable rugged, designed to last many, many years of service.
