Description

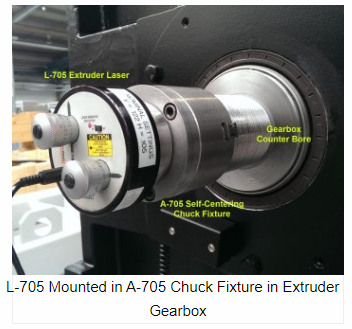

Hamar Laser’s L-705 Bore Laser Alignment System is highly accurate and unparalleled for ease of use. It can handle a wide range of bore alignment and straightness determination and measurement tasks. Even extremely difficult bore alignment challenges, like spherical bearing bores, can be done easily. The L-705 may be used at distances up to 100 feet and is recommended for applications with lower pointing-accuracy requirements, such as extruder barrel alignments and aerospace hinge lines. The L-706 is recommended for high pointing-accuracy applications, such as engine block bore alignments.
System Highlights
- Fast: 15-minute setup time. Measure each bore in seconds!

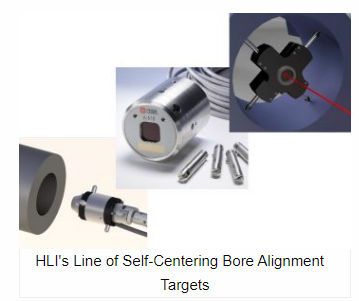

- Easy: Unique self-centering adapters are easy to insert into tight spaces and do not need to be inverted (0° & 180°) to calculate results.
- Versatile: Many target and adapter options for bore diameters from .250 in. (10 mm) to 40 in. (1 m) or more.
- Simple: Use simple X-Y readouts with .00001 in. (0.001 mm) resolution to view the data. No “black boxes” needed!

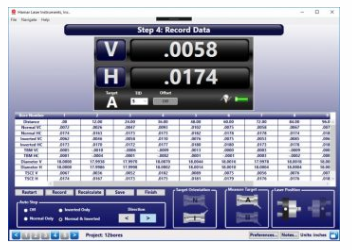

- Bore9 Software: Record bore alignment, calculate straightness results and print reports using optional Windows-based Bore9 Software.
FEATURES
Key Features
- 5-minute setup time. Measure each bore in seconds.

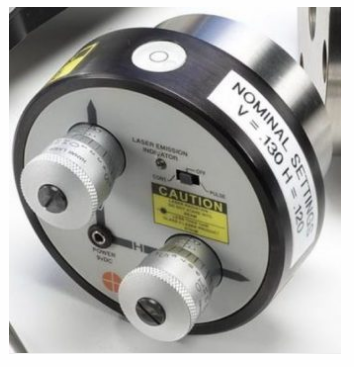

- L-705 Operational Range: 1 to 100 ft (0.2 to 30.5 m).
- Angular adjustment resolution of .0025 in. in 100 ft (0.025 mm in 30 m).

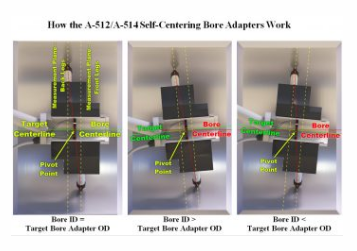

- A-510STA and A-510LTA Self-Centering Bore Adapters are easy to insert into tight spaces and do not need to be inverted (0° & 180°) to calculate results.
- Customized adapter measuring legs fit a large range of bore diameters from 2.25 to 16 in. (57.2 to 406.4 mm).
- R-1307 Readouts with .0001 in. (0.001 mm) resolution update in real time as the bore is adjusted.
- Add a second readout to transmit readings wirelessly up to 200 ft (61 m).
- Optional Bore9 Software aids with setup, records bore alignment data, analyzes the results and prints reports.
- Optional small-bore targets can align bores as small as .250 in. (10mm).
- Optional spherical-bore target with Virtual-PSD™ technology comes with customized adapters for easy and fast alignments.
- Durable and rugged, designed to last many, many years of service.
