Description
VIBRIO
Vibration Meter, Analyzer and Data Collector in Intrinsically Safe Version

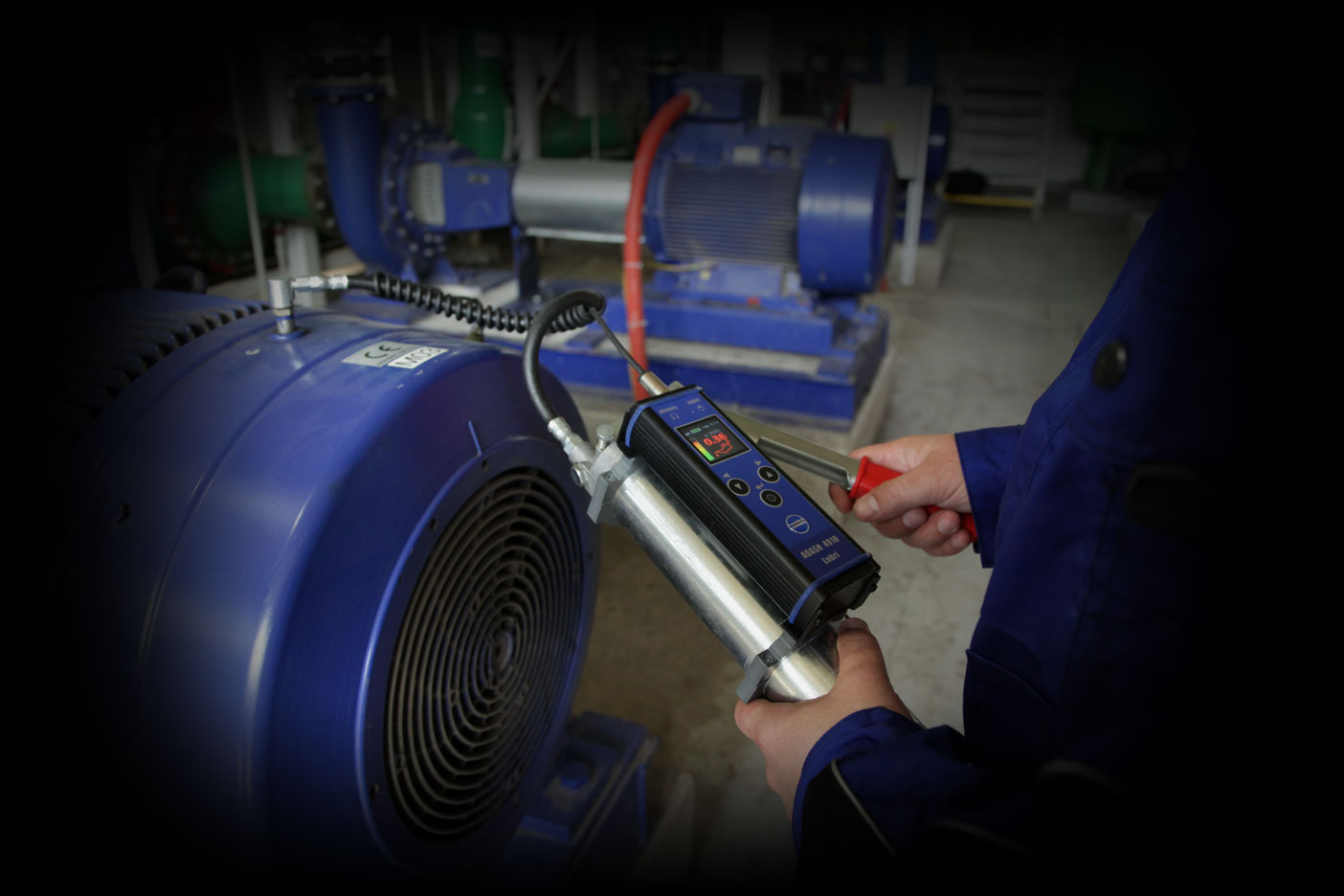

Predictive Maintenance based on condition monitoring starts here.
Expert System => automatic machine fault detection
Plug and Play => don’t bother with settings, just measure
MAINTENANCE SWISS ARMY KNIFE

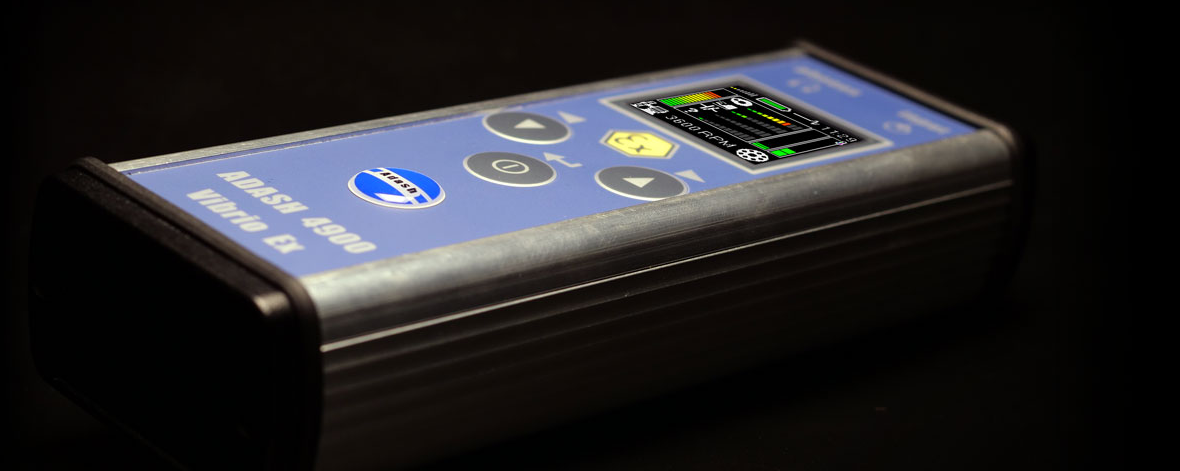

Vibrio M Ex
UNIVERSAL AND TOUGH

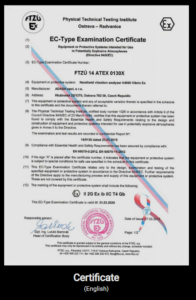

Ex certification : II 2 G Ex ib IIC T4 Gb
[II] Non-mining
[2] Zone 1
[G] Gas atmosphere
[Ex ib] Principle of protection: Intrinsic Safety EN 60079-11
[IIC] Gas group – Acetylene, Hydrogen
[T4] Temperature class 135°C
[Gb] Equipment Protection Level – Zone 1 (high protection)

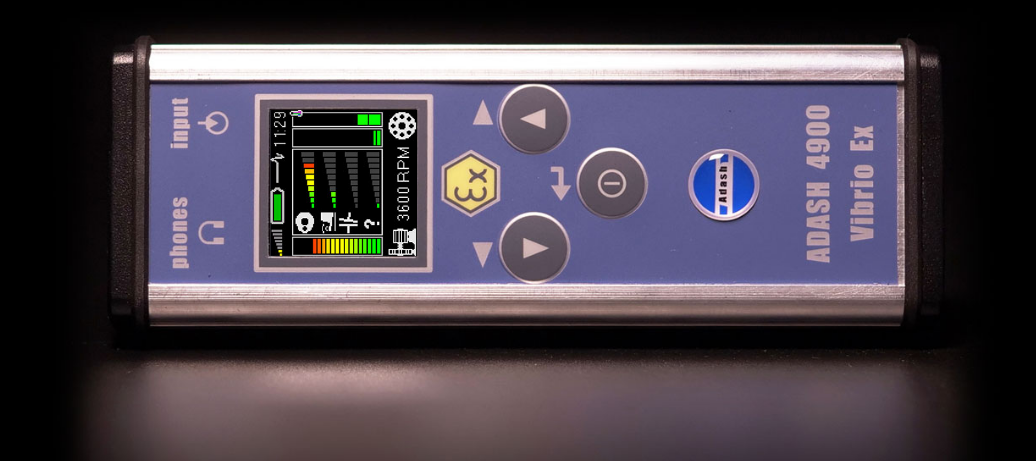

Heavy duty casing
2 x AA batteries – 7 hours operation
Direct measurement from
proximity probes (optionally)
3.5 Jack
3 buttons operation
Data transfer
through sensor connector

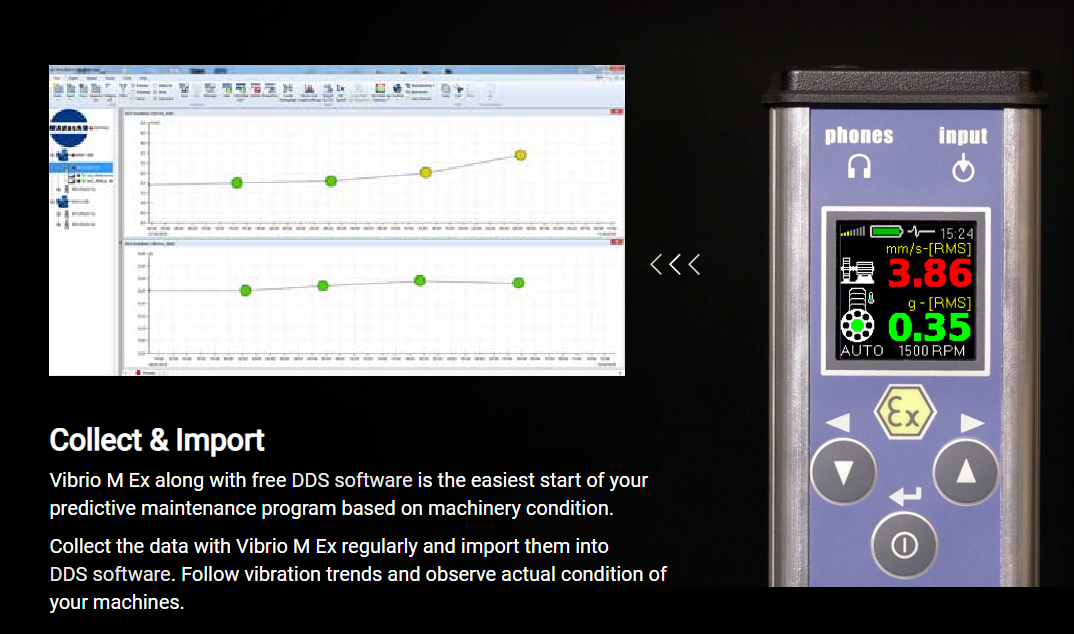

VIBRIO M + FREE DDS SOFTWARE
Free trending and data analysis software
DDS Download
TECHNICAL SPECIFICATIONS
Vibrio M Ex specifications
Input : 1 x ICP® powered accelerometer
Input range : 60 g PEAK with standard 100 mV/g sensor
e.g. 600 g PEAK with 10 mV/g sensor (sensitivity is adjustable in the device)
Measurements:
Velocity RMS: 10 – 1 000 Hz [mm/s, ips]
Velocity Peak: 10 – 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 – 16 kHz [g]
Acceleration Peak: 500 – 16 kHz [g]
Velocity time: 1 – 1 000 Hz [mm/s, ips], 2048 samples
Velocity spectrum: 1 – 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 – 16 kHz [g], 2048 samples*
Acceleration spectrum: 1 – 16 kHz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 – 16 kHz [g]
Acceleration Demod-Envelope Peak: 500 – 16 kHz [g]*
Acceleration Demod-Envelope time: 500 – 16 kHz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 – 16 kHz [g], 800 lines, range 400 Hz*
Displacement RMS: 2 – 100 Hz [µm, mil]
Displacement 0-Peak: 2 – 100 Hz [µm, mil]
Displacement Peak-Peak: 2 – 100 Hz [µm, mil]
* available in DDS software for Vibrio
Other functions : Stethoscope for listening machine (bearing) noises
Memory: 4 MB for data:
120960 overall values
or 900 measurements of 800 line spectra
or 2048 sample time signals
Data storing : Off-Route Route with DDS software (free download)
Interface : USB 3.0, 2.0 compatible
Software : Free version of DDS software (limited database size)
Display : Colour graphic OLED display 128×128 pixels,
diagonal 1.5“ (38 mm)
Output : 1 x AC signal 8 Ω / 0,5 W for external headphones
(signal listening)
Power : 2 x AA 1.5V batteries
(alkaline, NiMH, Lithium – 8 hours of operation)
Temperature : Operating: -5°C to 55°C
Dimensions : 150 x 60 x 35 mm
Weight : 330 g including batteries (without cable, sensor and magnet)
540 g including batteries, cable, sensor and magnet
Ex certification : [II] Non-mining
[2] Zone 1
[G] Gas atmosphere
[Ex ib] Principle of protection: Intrinsic Safety EN 60079-11
[IIC] Gas group – Acetylene, Hydrogen
[T4] Temperature class 135°C
[Gb] Equipment Protection Level – Zone 1 (high protection)
Accessories:
vibration sensor
coiled cable to connect vibration sensor
magnetic base for vibration sensor
headphones with 3.5 mm jack
USB cable
measuring tip for manual pressure on the sensor
transport case
USB flash drive with the manual
