A4900 Vibrio M

Description

VIBRIO

Vibration Meter, Analyzer and Data Collector in One

Predictive Maintenance based on condition monitoring starts here.

Expert System => automatic machine fault detection

Plug and Play => don’t bother with settings, just measure

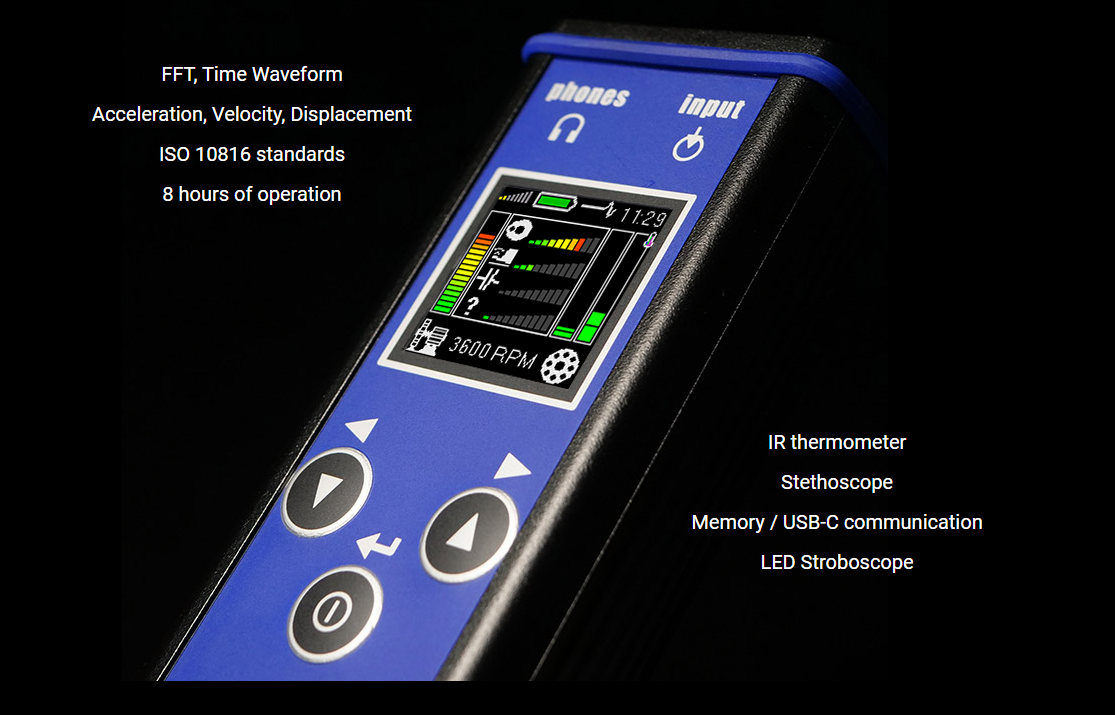

MAINTENANCE SWISS ARMY KNIFE

Vibrio M

VIBRIO M + FREE DDS SOFTWARE

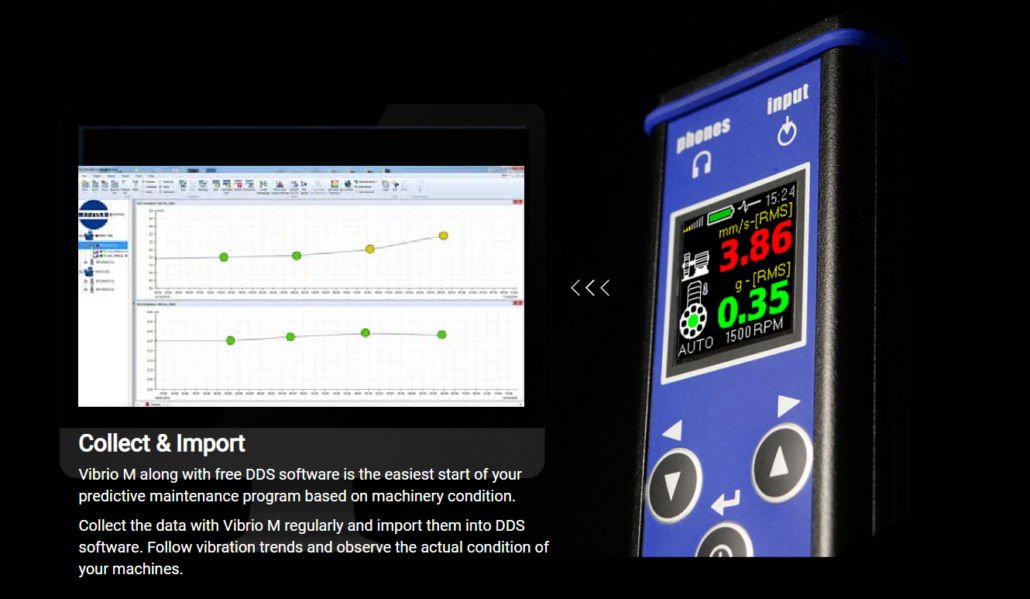

Free trending and data analysis software

DDS Downloads :

UNIVERSAL AND TOUGH

Ready for industry

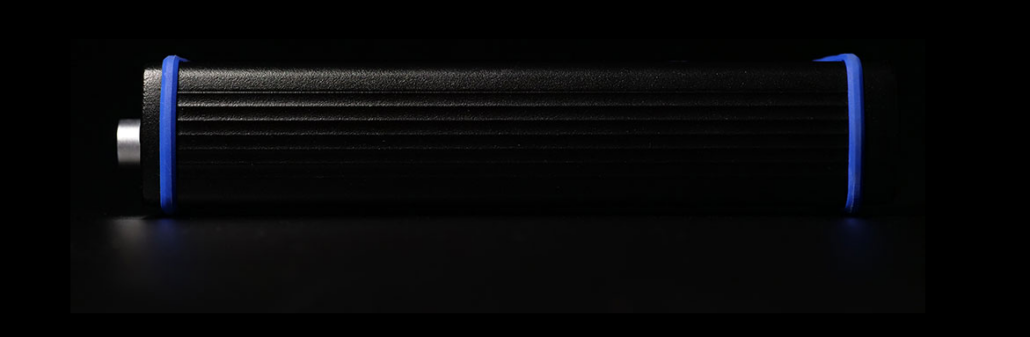

Heavy duty casing
LED flashlight
Direct measurement from
proximity probes (optionally)

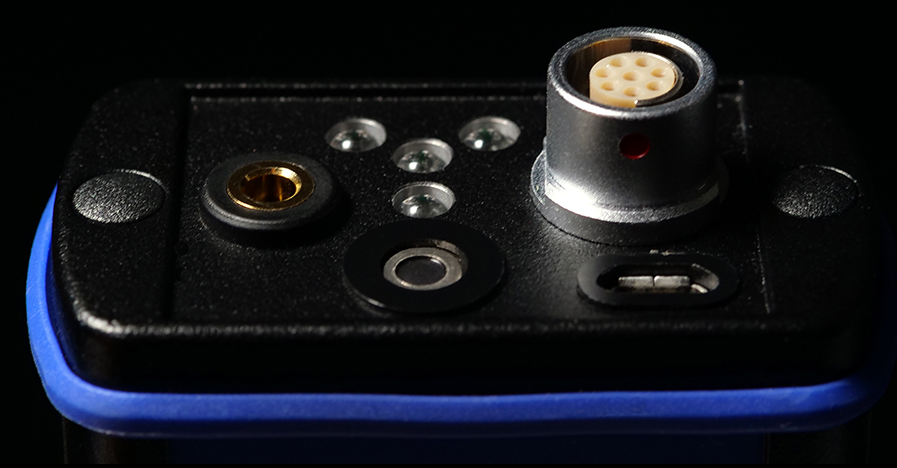

Unbreakable connector
USB-C data transfer
3.5 Jack

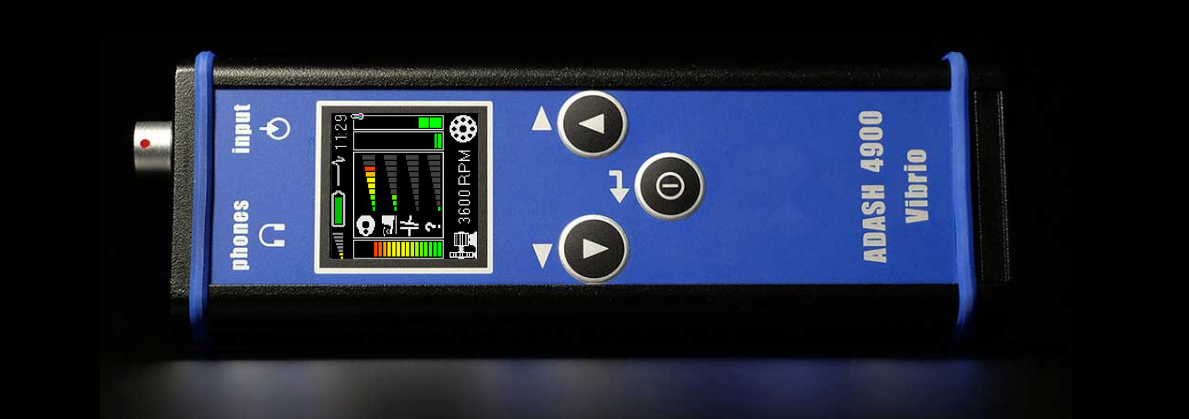

3 buttons operation

TECHNICAL SPECIFICATIONS

Vibrio M specifications

Input: 1 x ICP® powered accelerometer

Input range : 60 g PEAK with standard 100 mV/g sensor
e.g. 600 g PEAK with 10 mV/g sensor (sensitivity is adjustable in the device)

Measurements : Velocity RMS: 10 – 1 000 Hz [mm/s, ips]
Velocity Peak: 10 – 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 – 16 kHz [g]
Acceleration Peak: 500 – 16 kHz [g]
Velocity time: 1 – 1 000 Hz [mm/s, ips], 2048 samples
Velocity spectrum: 1 – 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 – 16 kHz [g], 2048 samples*
Acceleration spectrum: 1 – 16 kHz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 – 16 kHz [g]
Acceleration Demod-Envelope Peak: 500 – 16 kHz [g]*
Acceleration Demod-Envelope time: 500 – 16 kHz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 – 16 kHz [g], 800 lines, range 400 Hz*
Displacement RMS: 2 – 100 Hz [µm, mil]
Displacement 0-Peak: 2 – 100 Hz [µm, mil]
Displacement Peak-Peak: 2 – 100 Hz [µm, mil]* available in DDS software for Vibrio

IR temperature measurement : From -70˚C to +380˚C (-94˚F to +716˚F)

Other functions : LED stroboscope (0.17-300 Hz, 10 – 18 000 RPM)
LED torch
Stethoscope for listening machine (bearing) noises

Memory : 4 MB for data:
120960 overall values
or 900 measurements of 800 line spectra
or 2048 sample time signals

Data storing : Off-Route Route with DDS software (free download)

Interface : USB 3.0, 2.0 compatible

Software : Free version of DDS software (limited database size)

Display : Colour graphic OLED display 128×128 pixels,
diagonal 1.5“ (38 mm)

Output : 1 x AC signal 8 Ω / 0,5 W for external headphones
(signal listening)

Power : 2 x AA 1.5V batteries
(alkaline, NiMH, Lithium – 8 hours of operation)

Temperature : Operating: -5°C to 55°C

Dimensions : 150 x 60 x 35 mm
