Description
VA3 PRO
3-Channel Vibration Analyzer, Data Collector and Many More
A true vibration analyzer
real time FFTs, time waveforms etc.
Modularly based
buy only the modes you need

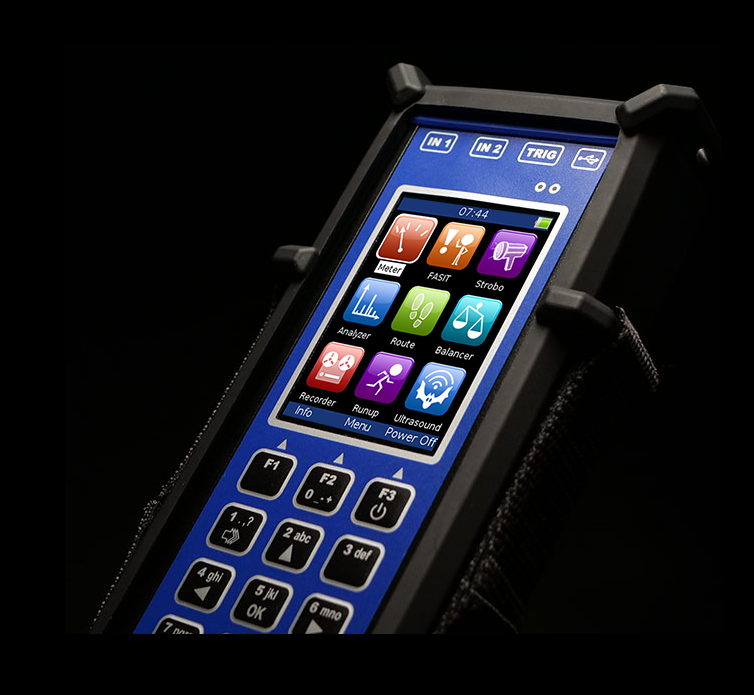

User friendly interface
graphical balancing mode

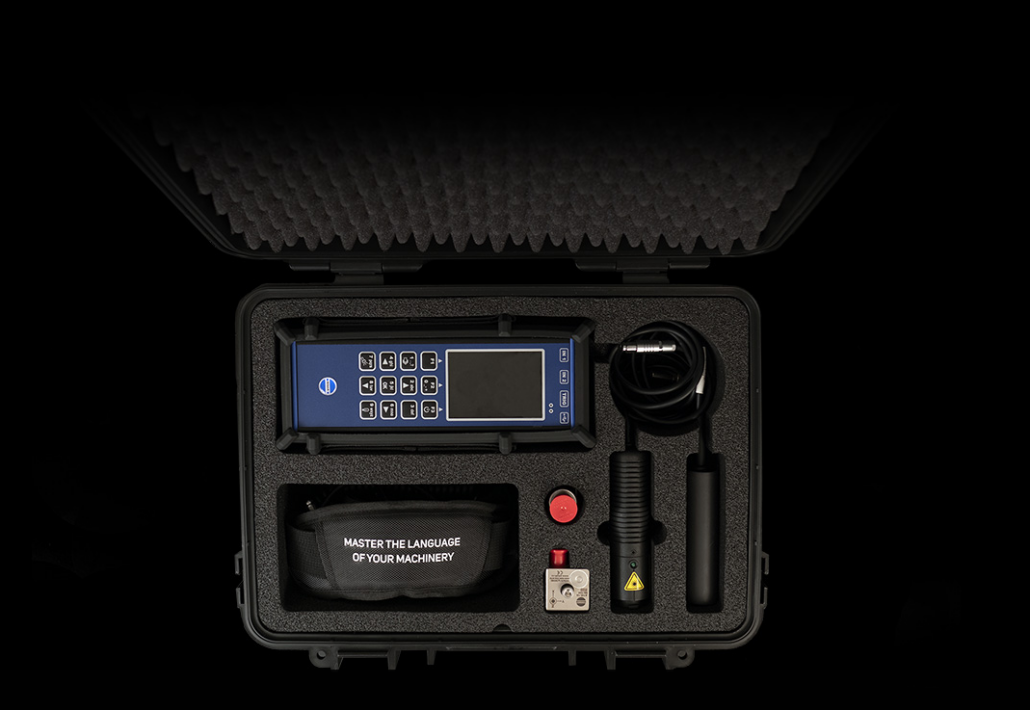

WHAT’S IN THE BOX?
Customize your VA3 Pro kit.
Select a single axis acceleration sensor or triaxial sensor for your day to day data collection.
A speed probe would be needed for balancing job and an ultrasound probe for leak detection.
No problem measuring Orbits, Centerline using Proximity probes.

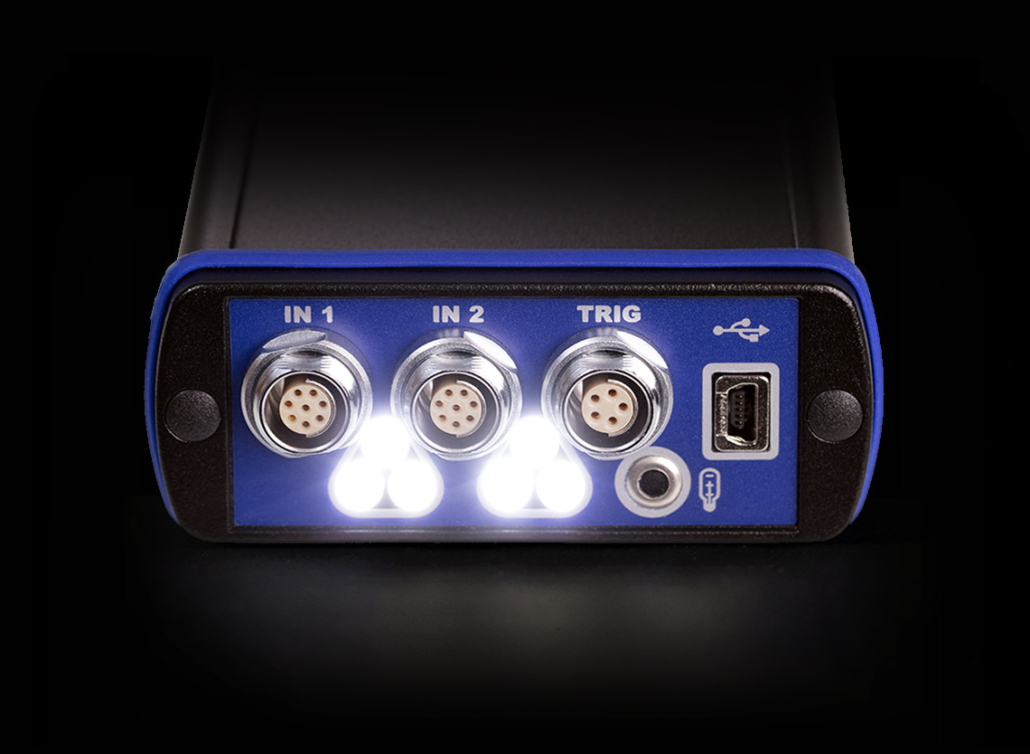

VERSATILITY & CONNECTIVITY
3x AC input – vibrations
3x DC input – process values
1x Trigger input (speed probe)
Triaxial sensor ready
IR temperature sensor
LED stroboscope / flashlight
Fast USB 2.0 communication
Robust Push-Pull connectors
TECHNICAL SPECIFICATIONS
VA3 Pro specifications
| Input channels | 3 x AC, ICP® power supply on/off 3 x DC for process values 1 x TACHO for speed probe / external trigger |
| Input range | AC +/- 12 V peak-peak DC +/- 24V |
| AD conversion | 24 bit, 64 bit internal signal processing No AutoGain function! |
| Dynamic range S/N | 120 dB |
| Frequency ranges (-3 dB) | Maximum range: 0.5 Hz – 25 kHz (64 kHz sampling) Minimum range: 0.5 Hz – 25 Hz (64 Hz sampling) |
| Sampling mode | Fully simultaneous for all 3 channels |
| FFT resolution | Min. 25 lines Max. 25 600 lines |
| Measurement modes | Analyzer – analytical measurements Data collector – route measurements Balancer – 1 and 2 plane on site balancing Recorder – raw signal recording for later post analysis Run Up – run up and coast down measurements Ultrasound – measurement of ultrasound in 30 – 50 kHz range LED stroboscope, LED torch FASIT – Expert system for automatic fault detection Vibration meter – basic vibration measurements |
| Software | Free version of DDS software (limited database size) Licensed DDS software |
|
Data processing
|
Real time FFT DEMOD – ENVELOPE analysis ACMT – low speed bearing analysis Order analysis User band pass analysis RPM measurement DC measurement Orbit measurement |
| IR temperature measurement | From -70˚C to +380˚C (-94˚F to +716˚F) |
| Trigger | Manual, External, Amplitude, Tacho |
| Display | Colour 240 x 320 pixels, TFT |
| Interface | USB 2.0, 3.0 compatible |
|
Operating temperature range
|
-10˚C to +50˚C
|
| Power | Battery pack for more than 10 hours of continous operation |
| Case | Aluminium – heavy duty (optionally with IP65 rating) |
| Weight | 780 g |
| Dimensions | 230 x 82 x 32 mm |
| Languages | Languages: English, Spanish, German, French, Portuguese, Russian, Czech, Hungarian, Polish |
