Description
16+ Channel Online Monitoring System
Monitor your critical machinery 24/7 with high-end A3716 online monitoring system. A3716 contains 16 AC channels for vibration measurements and 16 DC channels for process values such as temperature, pressure etc. All channels are measured fully simultaneously. 4 tacho / speed channels are included. Beside trending of vibration values you can measure more advanced measurements like Orbits, Centerline, SMax and more.

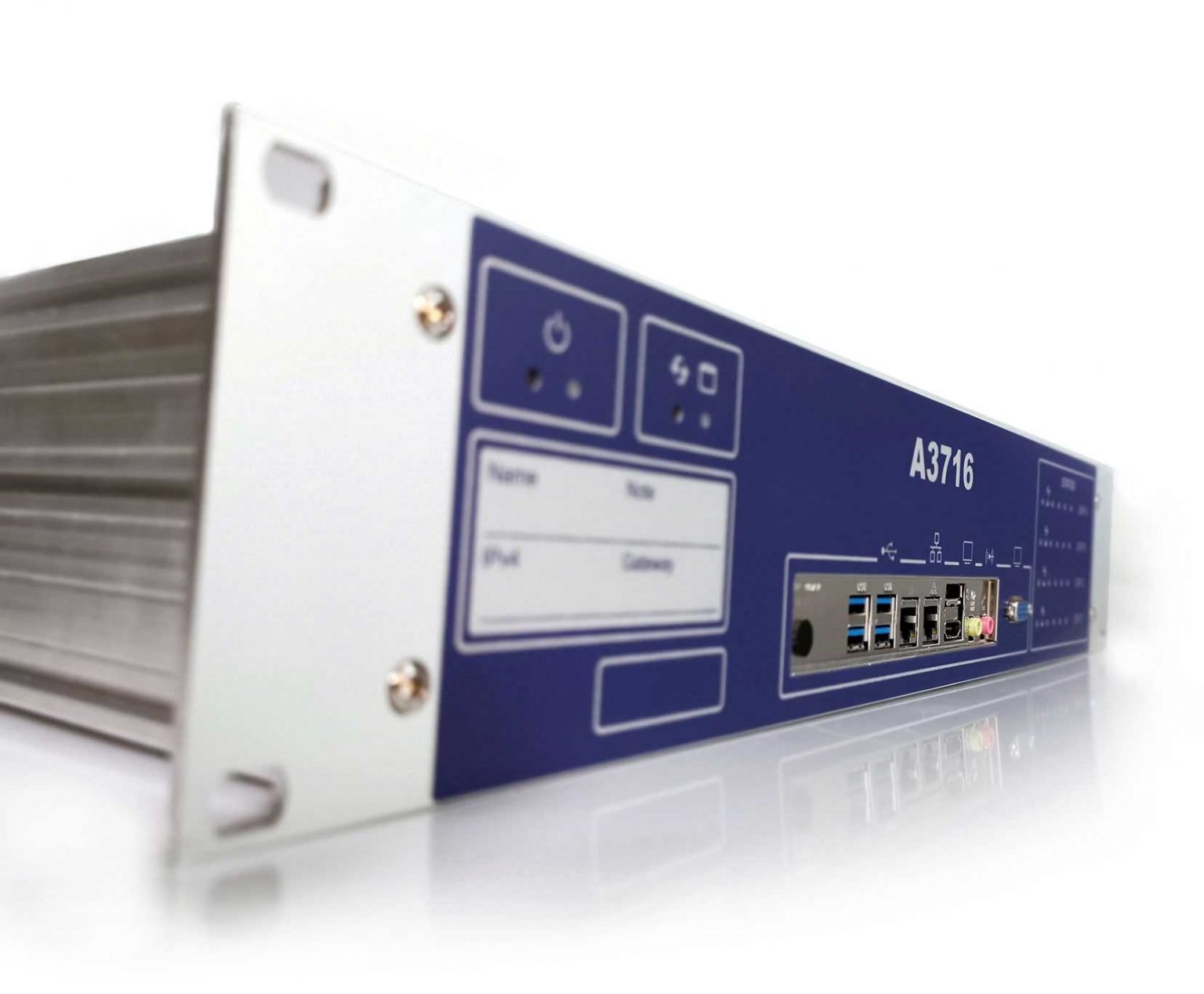

2U / 3U VERSION
A3716
2U
16x AC channels
16x DC channels
4x Speed input
3U
16x AC channels
16x DC channels
4x Speed input
16x 4-20 mA current loops
16x Output relays
Packed in standardized 19” inch rack in order to fit into your current cabinet.

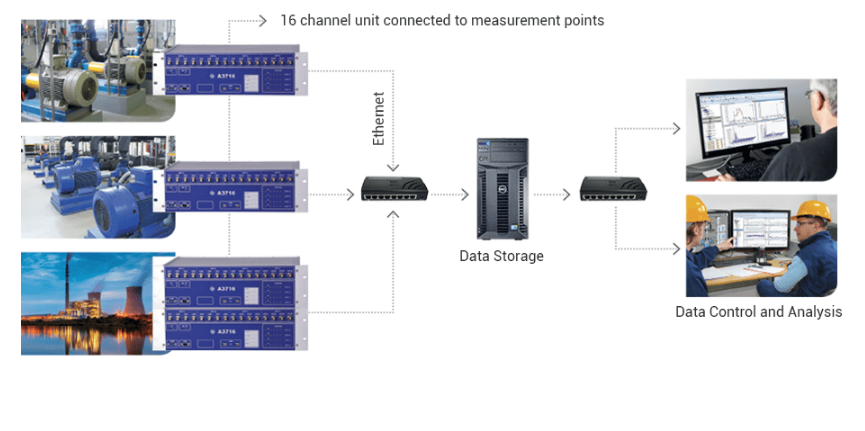

APPLICATION SCHEME
All the specs of the A3716
TECHNICAL SPECIFICATIONS
A3716 specifications
| Dynamic range S/N | 120 dB |
| AD conversion | 24 bit, 64 bit double floating point internal signal processing No AutoGain function! |
| Input range | AC +/- 12 V peak-peak DC +/- 24 V or 4 – 20 mA TACHO +10V |
| TACHO inputs | 4 independent TACHO for speed probe / external trigger speed range 0,8 Hz – 1000 Hz |
| Input channels DC |
16 x DC for process values
input impedance 100 kΩ (VDC), 250 Ω (mADC) |
| Input channels DC | 4 – 16 DC for process values input impedance 100 kΩ (VDC), 250 Ω (mADC) |
| Input channels AC | 16 x AC, ICP® power supply on/off input impedance 100kΩ integration single, double high pass filter 1 Hz – 12800 Hz low pass filter 25 Hz – 25600 Hz |
| Frequency ranges | max. 25,6 kHz (16 Ch, 65,5 kHz sampling) |
| Sampling mode | Fully simultaneous for 16 channels |
|
Processor
|
Intel Core2 – 2.5 GHz |
|
Memory RAM
|
4 GB
|
| Internal hard drive | SSD 128GB |
| Data acquisition | Overall values Time signals FFT real time analysis DEMOD – ENVELOPE analysis ACMT – low speed bearing analysis order analysis user band pass analysis RPM measurement DC measurement Orbit measurement Speed measurement |
| Trigger |
free run, TACHO, external (voltage)
|
|
Communication
|
Ethernet 1GB RJ45
|
|
Temperature range
|
-10˚C to +50˚C
|
| Power | AC 110 – 240 V, 45 – 65 Hz |
| Case | 19´´aluminium rack |
| Size & Weight (2U): | 430 x 360 x 90 mm 4,7 kg |
|
Size & Weight (3U)
|
430 x 360 x 135 mm 6,2 kg |

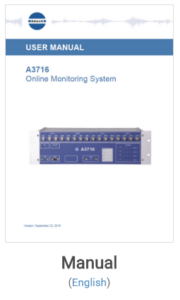

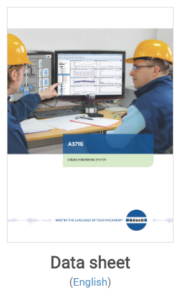

DATA SHEETS & MANUALS
